Categorical Data

import copy
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns
from sklearn.preprocessing import LabelEncoder, LabelBinarizer
import category_encoders as ce

%matplotlib inline

Identifying Categorical Data: Nominal, Ordinal and Continuous

df_flights = pd.read_csv('https://raw.githubusercontent.com/ismayc/pnwflights14/master/data/flights.csv')

df_flights.head()

	year	month	day	dep_time	dep_delay	arr_time	arr_delay	carrier	tailnum	flight	origin	dest	air_time	distance	hour	minute
0	2014	1	1	1.0	96.0	235.0	70.0	AS	N508AS	145	PDX	ANC	194.0	1542	0.0	1.0
1	2014	1	1	4.0	-6.0	738.0	-23.0	US	N195UW	1830	SEA	CLT	252.0	2279	0.0	4.0
2	2014	1	1	8.0	13.0	548.0	-4.0	UA	N37422	1609	PDX	IAH	201.0	1825	0.0	8.0
3	2014	1	1	28.0	-2.0	800.0	-23.0	US	N547UW	466	PDX	CLT	251.0	2282	0.0	28.0
4	2014	1	1	34.0	44.0	325.0	43.0	AS	N762AS	121	SEA	ANC	201.0	1448	0.0	34.0

df_flights.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 162049 entries, 0 to 162048
Data columns (total 16 columns):
 #   Column     Non-Null Count   Dtype
---  ------     --------------   -----
 0   year       162049 non-null  int64
 1   month      162049 non-null  int64
 2   day        162049 non-null  int64
 3   dep_time   161192 non-null  float64
 4   dep_delay  161192 non-null  float64
 5   arr_time   161061 non-null  float64
 6   arr_delay  160748 non-null  float64
 7   carrier    162049 non-null  object
 8   tailnum    161801 non-null  object
 9   flight     162049 non-null  int64
 10  origin     162049 non-null  object
 11  dest       162049 non-null  object
 12  air_time   160748 non-null  float64
 13  distance   162049 non-null  int64
 14  hour       161192 non-null  float64
 15  minute     161192 non-null  float64
dtypes: float64(7), int64(5), object(4)
memory usage: 19.8+ MB

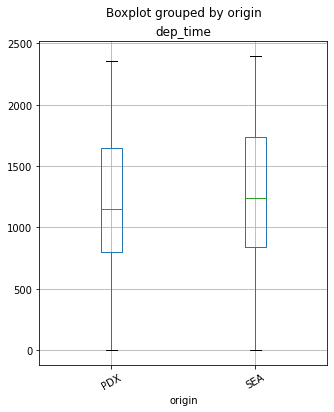

df_flights.boxplot('dep_time', 'origin',rot = 30, figsize=(5,6))

<AxesSubplot:title={'center':'dep_time'}, xlabel='origin'>

cat_df_flights = df_flights.select_dtypes(include=['object']).copy()

cat_df_flights.head()

	carrier	tailnum	origin	dest
0	AS	N508AS	PDX	ANC
1	US	N195UW	SEA	CLT
2	UA	N37422	PDX	IAH
3	US	N547UW	PDX	CLT
4	AS	N762AS	SEA	ANC

cat_df_flights.isnull().values.sum()

248

cat_df_flights.isnull().sum()

carrier      0
tailnum    248
origin       0
dest         0
dtype: int64

cat_df_flights = cat_df_flights.fillna(cat_df_flights['tailnum'].value_counts().index[0])

cat_df_flights.isnull().values.sum()

0

carrier_count = cat_df_flights['carrier'].value_counts()

carrier_count

AS    62460
WN    23355
OO    18710
DL    16716
UA    16671
AA     7586
US     5946
B6     3540
VX     3272
F9     2698
HA     1095
Name: carrier, dtype: int64

carrier_count.count()

11

carrier_count.index

Index(['AS', 'WN', 'OO', 'DL', 'UA', 'AA', 'US', 'B6', 'VX', 'F9', 'HA'], dtype='object')

carrier_count.values

array([62460, 23355, 18710, 16716, 16671,  7586,  5946,  3540,  3272,
        2698,  1095])

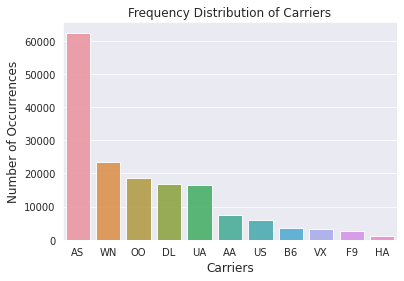

sns.set_style('darkgrid')

sns.barplot(carrier_count.index, carrier_count.values, alpha=0.9)
plt.title('Frequency Distribution of Carriers')
plt.xlabel('Carriers', fontsize=12)
plt.ylabel('Number of Occurrences', fontsize=12)
plt.show()

/opt/hostedtoolcache/Python/3.9.13/x64/lib/python3.9/site-packages/seaborn/_decorators.py:36: FutureWarning: Pass the following variables as keyword args: x, y. From version 0.12, the only valid positional argument will be `data`, and passing other arguments without an explicit keyword will result in an error or misinterpretation.
  warnings.warn(

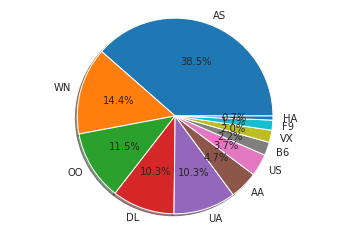

plt.pie(carrier_count.values,
        labels=carrier_count.index,
        autopct='%1.1f%%', shadow=True)
plt.axis('equal')
plt.show()

Encoding Categorical Data

Replacing values

replace_map_comp = {'carrier' :{val:idx
                                for idx, val in enumerate(cat_df_flights['carrier']
                                                          .astype('category')
                                                          .cat.categories.tolist())}}

replace_map_comp

{'carrier': {'AA': 0,
  'AS': 1,
  'B6': 2,
  'DL': 3,
  'F9': 4,
  'HA': 5,
  'OO': 6,
  'UA': 7,
  'US': 8,
  'VX': 9,
  'WN': 10}}

cat_df_flights_replace = cat_df_flights.copy()

cat_df_flights_replace.replace(replace_map_comp, inplace=True)

cat_df_flights_replace.head()

	carrier	tailnum	origin	dest
0	1	N508AS	PDX	ANC
1	8	N195UW	SEA	CLT
2	7	N37422	PDX	IAH
3	8	N547UW	PDX	CLT
4	1	N762AS	SEA	ANC

cat_df_flights_replace['carrier'].dtypes

dtype('int64')

Encoding labels

cat_df_flights_lc = cat_df_flights.copy()

# typecasting categorical features to a category dtype to make it faster than object dtype
cat_df_flights_lc['carrier'] = cat_df_flights_lc['carrier'].astype('category')
cat_df_flights_lc['origin'] = cat_df_flights_lc['origin'].astype('category')

cat_df_flights_lc['carrier'] = cat_df_flights_lc['carrier'].cat.codes

cat_df_flights_lc.head()

	carrier	tailnum	origin	dest
0	1	N508AS	PDX	ANC
1	8	N195UW	SEA	CLT
2	7	N37422	PDX	IAH
3	8	N547UW	PDX	CLT
4	1	N762AS	SEA	ANC

cat_df_flights_specific = cat_df_flights.copy()

cat_df_flights_specific['US_code'] = np.where(cat_df_flights_specific['carrier'].str.contains('US'), 1, 0)

cat_df_flights_specific.head()

	carrier	tailnum	origin	dest	US_code
0	AS	N508AS	PDX	ANC	0
1	US	N195UW	SEA	CLT	1
2	UA	N37422	PDX	IAH	0
3	US	N547UW	PDX	CLT	1
4	AS	N762AS	SEA	ANC	0

cat_df_flights_sklearn = cat_df_flights.copy()

lb_make = LabelEncoder()

cat_df_flights_sklearn['carrier_code'] = lb_make.fit_transform(cat_df_flights_sklearn['carrier'])

cat_df_flights_sklearn.head()

	carrier	tailnum	origin	dest	carrier_code
0	AS	N508AS	PDX	ANC	1
1	US	N195UW	SEA	CLT	8
2	UA	N37422	PDX	IAH	7
3	US	N547UW	PDX	CLT	8
4	AS	N762AS	SEA	ANC	1

One-Hot encoding

cat_df_flights_onehot = cat_df_flights.copy()

# cat_df_flights_onehot = pd.get_dummies(cat_df_flights_onehot, columns=['carrier', 'dest'], prefix=['carrier', 'dest'])
cat_df_flights_onehot = pd.get_dummies(cat_df_flights_onehot, columns=['carrier'], prefix=['carrier'])

cat_df_flights_onehot.head()

	tailnum	origin	dest	carrier_AA	carrier_AS	carrier_B6	carrier_DL	carrier_F9	carrier_HA	carrier_OO	carrier_UA	carrier_US	carrier_VX	carrier_WN
0	N508AS	PDX	ANC	0	1	0	0	0	0	0	0	0	0	0
1	N195UW	SEA	CLT	0	0	0	0	0	0	0	0	1	0	0
2	N37422	PDX	IAH	0	0	0	0	0	0	0	1	0	0	0
3	N547UW	PDX	CLT	0	0	0	0	0	0	0	0	1	0	0
4	N762AS	SEA	ANC	0	1	0	0	0	0	0	0	0	0	0

cat_df_flights_onehot_sklearn = cat_df_flights.copy()

lb = LabelBinarizer()

lb_result = lb.fit_transform(cat_df_flights_onehot_sklearn['carrier'])

lb_result_df = pd.DataFrame(lb_result, columns=lb.classes_)

lb_result_df.head()

	AA	AS	B6	DL	F9	HA	OO	UA	US	VX	WN
0	0	1	0	0	0	0	0	0	0	0	0
1	0	0	0	0	0	0	0	0	1	0	0
2	0	0	0	0	0	0	0	1	0	0	0
3	0	0	0	0	0	0	0	0	1	0	0
4	0	1	0	0	0	0	0	0	0	0	0

result_df = pd.concat([cat_df_flights_onehot_sklearn, lb_result_df], axis=1)

result_df.head()

	carrier	tailnum	origin	dest	AA	AS	B6	DL	F9	HA	OO	UA	US	VX	WN
0	AS	N508AS	PDX	ANC	0	1	0	0	0	0	0	0	0	0	0
1	US	N195UW	SEA	CLT	0	0	0	0	0	0	0	0	1	0	0
2	UA	N37422	PDX	IAH	0	0	0	0	0	0	0	1	0	0	0
3	US	N547UW	PDX	CLT	0	0	0	0	0	0	0	0	1	0	0
4	AS	N762AS	SEA	ANC	0	1	0	0	0	0	0	0	0	0	0

Binary encoding

cat_df_flights_ce = cat_df_flights.copy()

encoder = ce.BinaryEncoder(cols=['carrier'])

df_binary = encoder.fit_transform(cat_df_flights_ce)

df_binary.head()

	carrier_0	carrier_1	carrier_2	carrier_3	tailnum	origin	dest
0	0	0	0	1	N508AS	PDX	ANC
1	0	0	1	0	N195UW	SEA	CLT
2	0	0	1	1	N37422	PDX	IAH
3	0	0	1	0	N547UW	PDX	CLT
4	0	0	0	1	N762AS	SEA	ANC

Backward difference encoding

encoder = ce.BackwardDifferenceEncoder(cols=['carrier'])

df_bd = encoder.fit_transform(cat_df_flights_ce)

df_bd.head()

	intercept	carrier_0	carrier_1	carrier_2	carrier_3	carrier_4	carrier_5	carrier_6	carrier_7	carrier_8	carrier_9	tailnum	origin	dest
0	1	-0.909091	-0.818182	-0.727273	-0.636364	-0.545455	-0.454545	-0.363636	-0.272727	-0.181818	-0.090909	N508AS	PDX	ANC
1	1	0.090909	-0.818182	-0.727273	-0.636364	-0.545455	-0.454545	-0.363636	-0.272727	-0.181818	-0.090909	N195UW	SEA	CLT
2	1	0.090909	0.181818	-0.727273	-0.636364	-0.545455	-0.454545	-0.363636	-0.272727	-0.181818	-0.090909	N37422	PDX	IAH
3	1	0.090909	-0.818182	-0.727273	-0.636364	-0.545455	-0.454545	-0.363636	-0.272727	-0.181818	-0.090909	N547UW	PDX	CLT
4	1	-0.909091	-0.818182	-0.727273	-0.636364	-0.545455	-0.454545	-0.363636	-0.272727	-0.181818	-0.090909	N762AS	SEA	ANC

Miscellaneous features

dummy_df_age = pd.DataFrame({'age':['0-20', '20-40', '40-60','60-80']})

dummy_df_age['start'], dummy_df_age['end'] = zip(*dummy_df_age['age'].map(lambda x: x.split('-')))

dummy_df_age.head()

	age	start	end
0	0-20	0	20
1	20-40	20	40
2	40-60	40	60
3	60-80	60	80

dummy_df_age = pd.DataFrame({'age':['0-20', '20-40', '40-60','60-80']})

def split_mean(x):
    split_list = x.split('-')
    mean = float(split_list[0]) + float(split_list[1]) / 2
    return mean

dummy_df_age['age_mean'] = dummy_df_age['age'].apply(lambda x: split_mean(x))

dummy_df_age.head()

	age	age_mean
0	0-20	10.0
1	20-40	40.0
2	40-60	70.0
3	60-80	100.0
